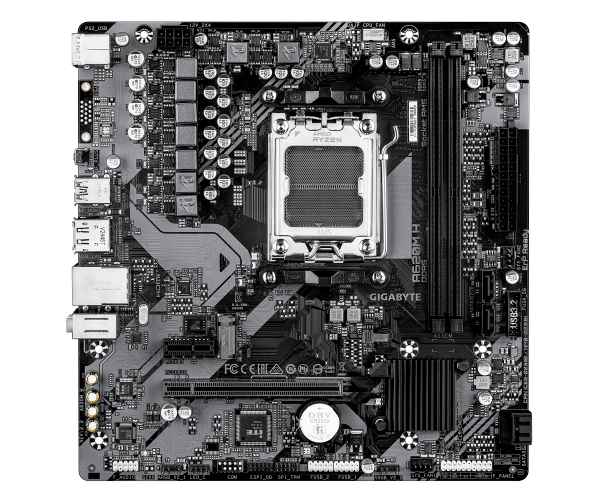

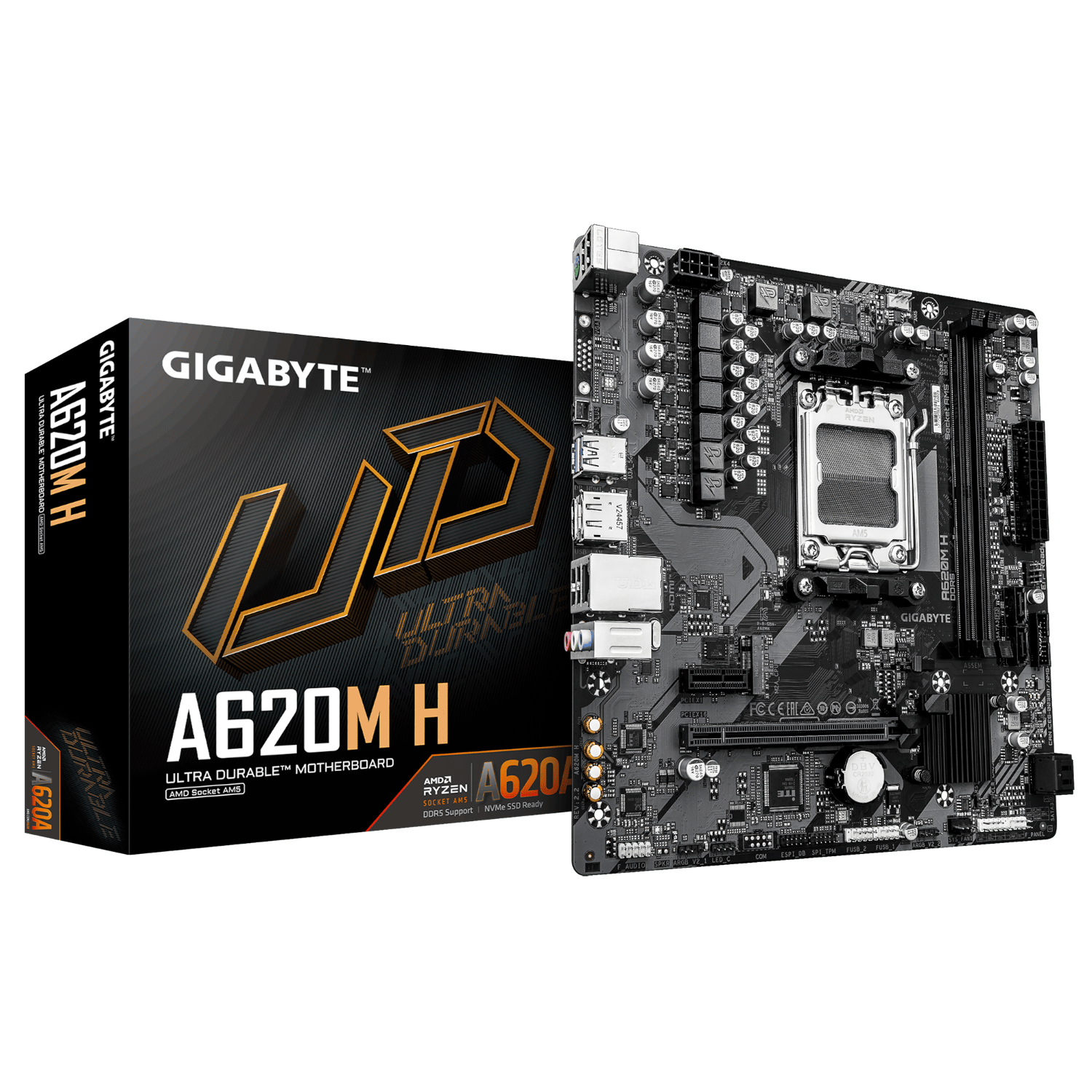

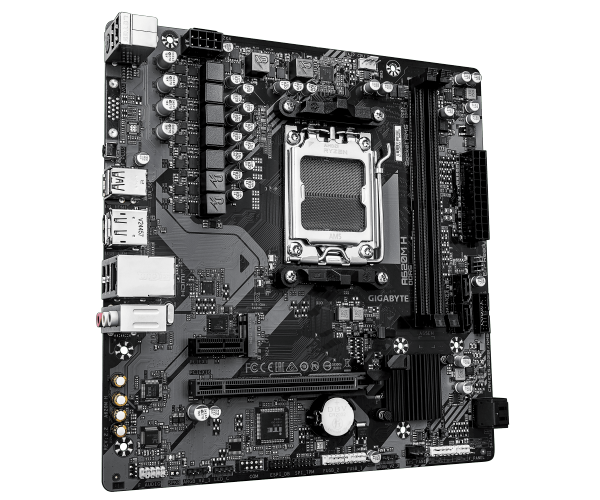

GIGABYTE A620M H (Rev. 2.2) – Technical Specifications
Main Specifications
| Feature | Specification |
|---|---|
| Chipset | AMD A620A |
| CPU Socket | AMD AM5 |
| Supported CPUs | Ryzen 7000, 8000 and 9000 Series |
| Form Factor | Micro-ATX |
| Dimensions | 230 × 225 mm |
| Memory Type | DDR5 |
| Memory Slots | 2 × DIMM |
| Maximum Memory | 128GB |
| Memory Speed | Up to DDR5-7600 (OC), depending on CPU and RAM |
| Memory Support | AMD EXPO and Intel XMP |
| PCIe Graphics Slot | 1 × PCIe 4.0 x16 |
| M.2 Storage | 1 × PCIe 4.0 x4 |
| SATA | 4 × SATA 6Gb/s |
| LAN | Gigabit Ethernet (1GbE) |
| Audio | Realtek HD Audio |

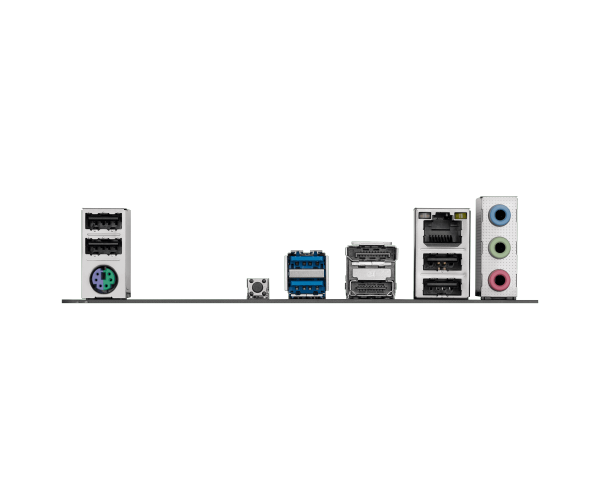

Connectivity
-
Display Outputs: 1 × DisplayPort 1.4, 1 × HDMI 2.1
-
USB Rear: 2 × USB 3.2 Gen 1, 4 × USB 2.0
-
Networking: 1 × RJ-45 Ethernet
-
Audio: 3 × audio jacks
-
Other: PS/2 keyboard/mouse port and Q-Flash Plus button
Additional Features
-
5+2+2-phase digital VRM design
-
Smart Fan 6 fan control
-
RGB and addressable RGB headers
-
Q-Flash Plus BIOS updating without CPU, RAM or graphics card installed
-
Support for Windows 10 and Windows 11 64-bit
