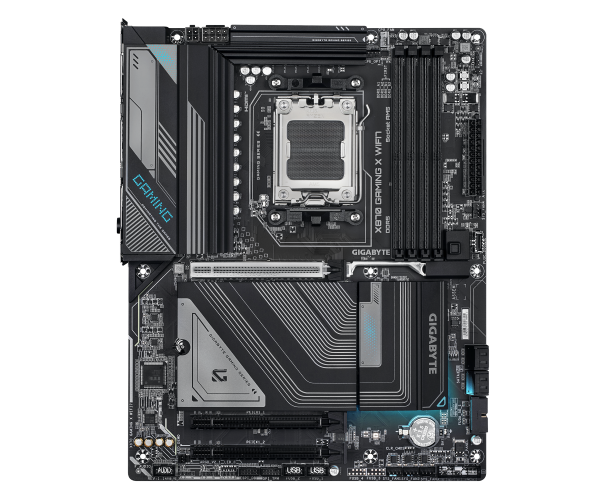

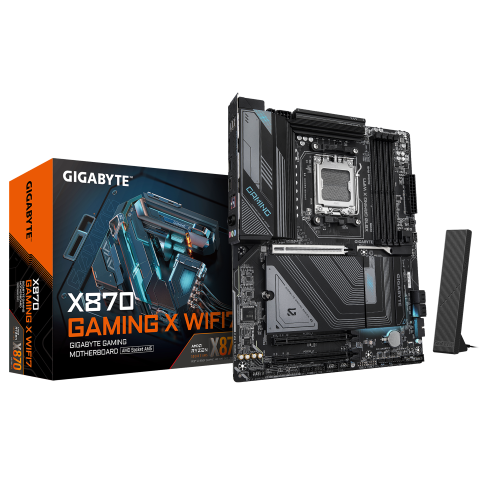

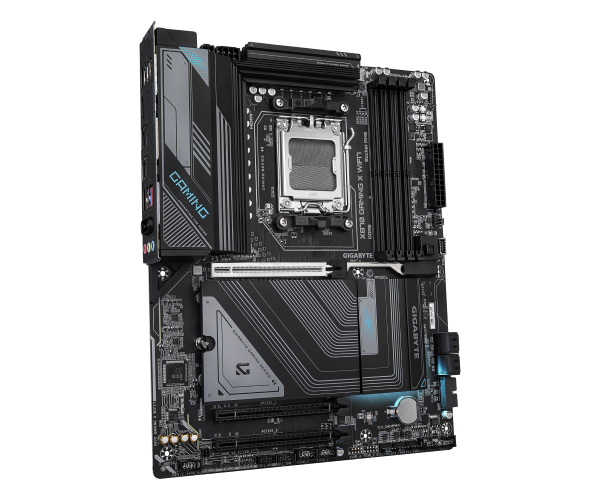

GIGABYTE X870 GAMING X WIFI7 – Technical Specifications
Main Specifications
| Feature | Specification |
|---|---|
| Chipset | AMD X870 |
| CPU Socket | AMD AM5 |
| Supported CPUs | AMD Ryzen 7000, 8000 and 9000 Series |
| Form Factor | ATX |
| Dimensions | 305 × 244 mm |
| Memory Type | DDR5 |
| Memory Slots | 4 × DIMM |
| Maximum Memory | 256GB |
| Memory Speed | Up to DDR5-8200 (OC) |
| Memory Architecture | Dual Channel |
| Main Graphics Slot | PCIe 5.0 x16* |
| Additional Expansion Slots | 2 × PCIe 3.0 x1 |
| M.2 Slots | 3 |
| M.2 Storage | 1 × PCIe 5.0 x4, 2 × PCIe 4.0 |
| SATA Ports | 4 × SATA 6Gb/s |
| LAN | 2.5GbE |
| Wi-Fi | Wi-Fi 7 |
| Bluetooth | 5.4 |
| Audio | Realtek HD Audio, up to 7.1-channel |

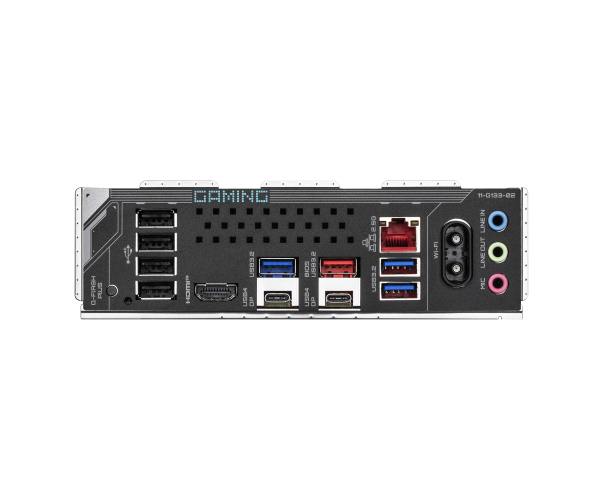

Connectivity
-
USB4 Type-C: 2 × USB4, up to 40Gbps
-
USB-C Front Header: USB 3.2 Gen 2×2, up to 20Gbps
-
USB-A Rear: 1 × USB 3.2 Gen 2, 3 × USB 3.2 Gen 1 and 4 × USB 2.0
-
HDMI: 1 × HDMI 2.1
-
Ethernet: 1 × RJ-45, 2.5GbE
-
Wireless: Wi-Fi 7 with external antenna
-
Audio: 3 × audio jacks
-
Storage: 3 × M.2 and 4 × SATA connectors
Power and Cooling
-
VRM: 16+2+2-phase digital power design
-
CPU Power Connectors: 1 × 8-pin + 1 × 4-pin
-
Cooling: VRM Thermal Armor Advanced and M.2 Thermal Guard
-
Fan Control: Smart Fan 6
-
RGB: 3 × addressable RGB headers and 1 × RGB header
-
BIOS Update: Q-Flash Plus
-
Memory Profiles: AMD EXPO and Intel XMP
