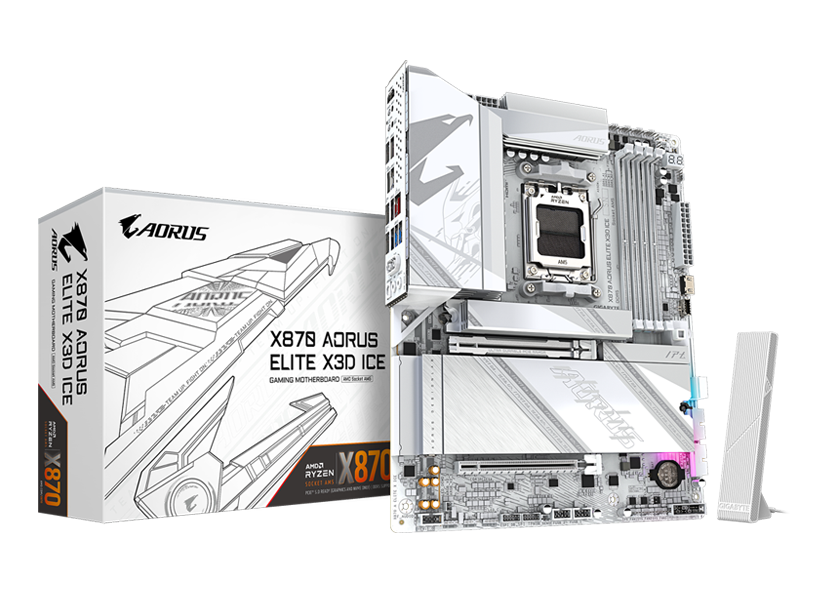

GIGABYTE X870 AORUS ELITE X3D ICE – Technical Specifications
ain Specifications
| Feature | Specification |
|---|---|
| Chipset | AMD X870 |
| CPU Socket | AMD AM5 |
| Supported CPUs | Ryzen 7000, 8000 and 9000 Series |
| Form Factor | ATX |
| Dimensions | 305 × 244 mm |
| Memory Type | DDR5 |
| Memory Slots | 4 × DIMM |
| Maximum Memory | 256GB |
| Memory Speed | Up to DDR5-8800 (OC) |
| Memory Architecture | Dual Channel |
| Main Graphics Slot | PCIe 5.0 x16 |
| Additional Expansion Slot | PCIe 4.0 x4 |
| M.2 Slots | 4 |
| M.2 Storage | 2 × PCIe 5.0, 2 × PCIe 4.0 |
| SATA Ports | 2 × SATA 6Gb/s |
| LAN | 5GbE |
| Wi-Fi | Wi-Fi 7 |
| Bluetooth | 5.4 |
| Audio | Realtek ALC1220-VB, 7.1-channel HD Audio |
Connectivity
-
USB4 Type-C: 2 × USB4, up to 40Gbps each
-
USB-C: 1 × USB 3.2 Gen 2
-
USB-A: USB 3.2 Gen 2 and Gen 1 ports, plus USB 2.0
-
HDMI: 1 × HDMI
-
Ethernet: 1 × RJ-45, 5GbE
-
Wireless: Wi-Fi 7 with external antenna
-
Audio: Audio jacks and optical S/PDIF output
-
Internal USB-C: Front-panel USB 3.2 Gen 2×2 support
Power and Cooling
-
VRM: 16+2+2 digital power design
-
CPU Power Connectors: 2 × 8-pin
-
Cooling: VRM Thermal Armor Advanced and M.2 Thermal Guard heatsinks
-
Fan Control: Smart Fan 6
-
RGB: 3 × addressable RGB headers and 1 × RGB header
-
BIOS Update: Q-Flash Plus
-
Gaming Feature: X3D Turbo Mode 2.0
