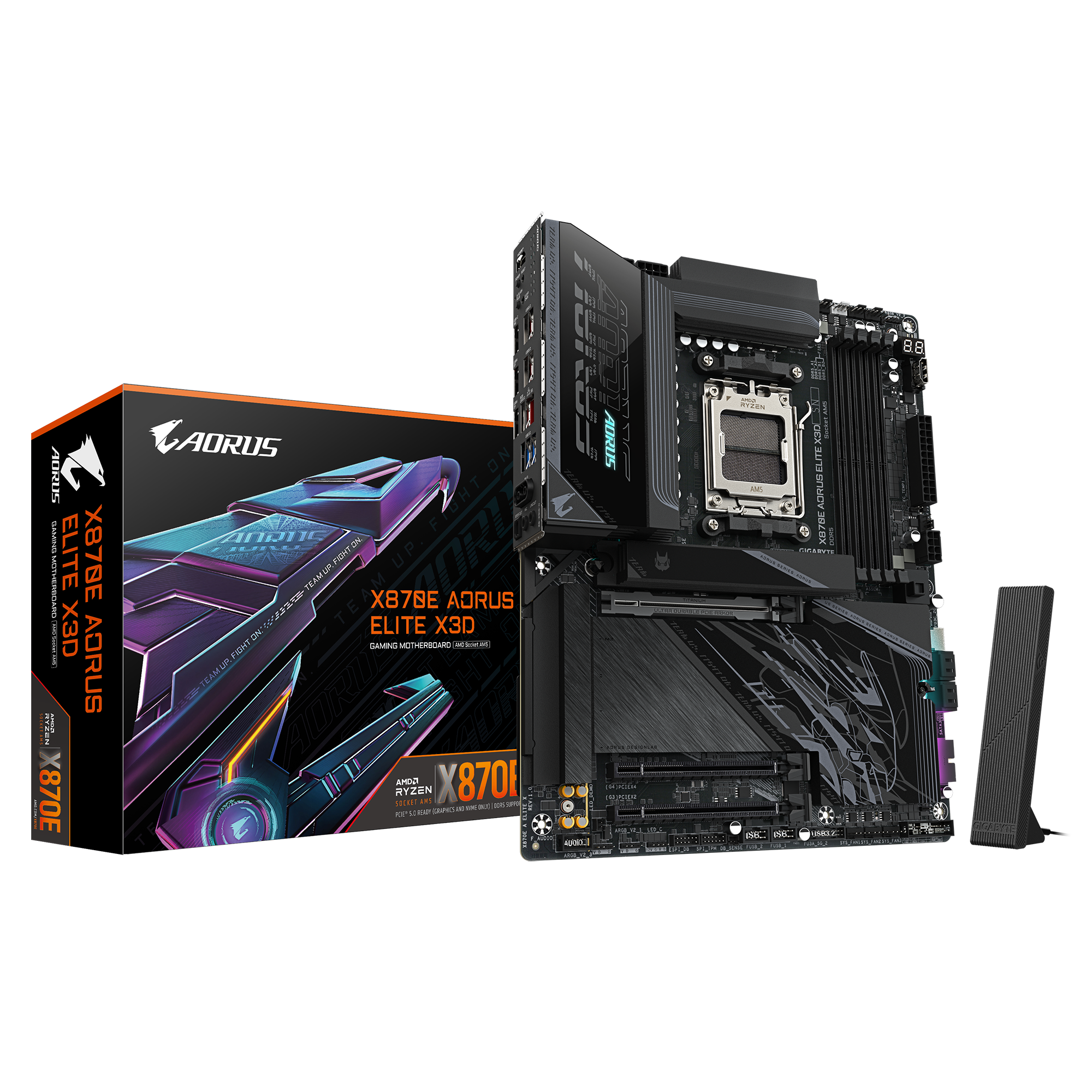

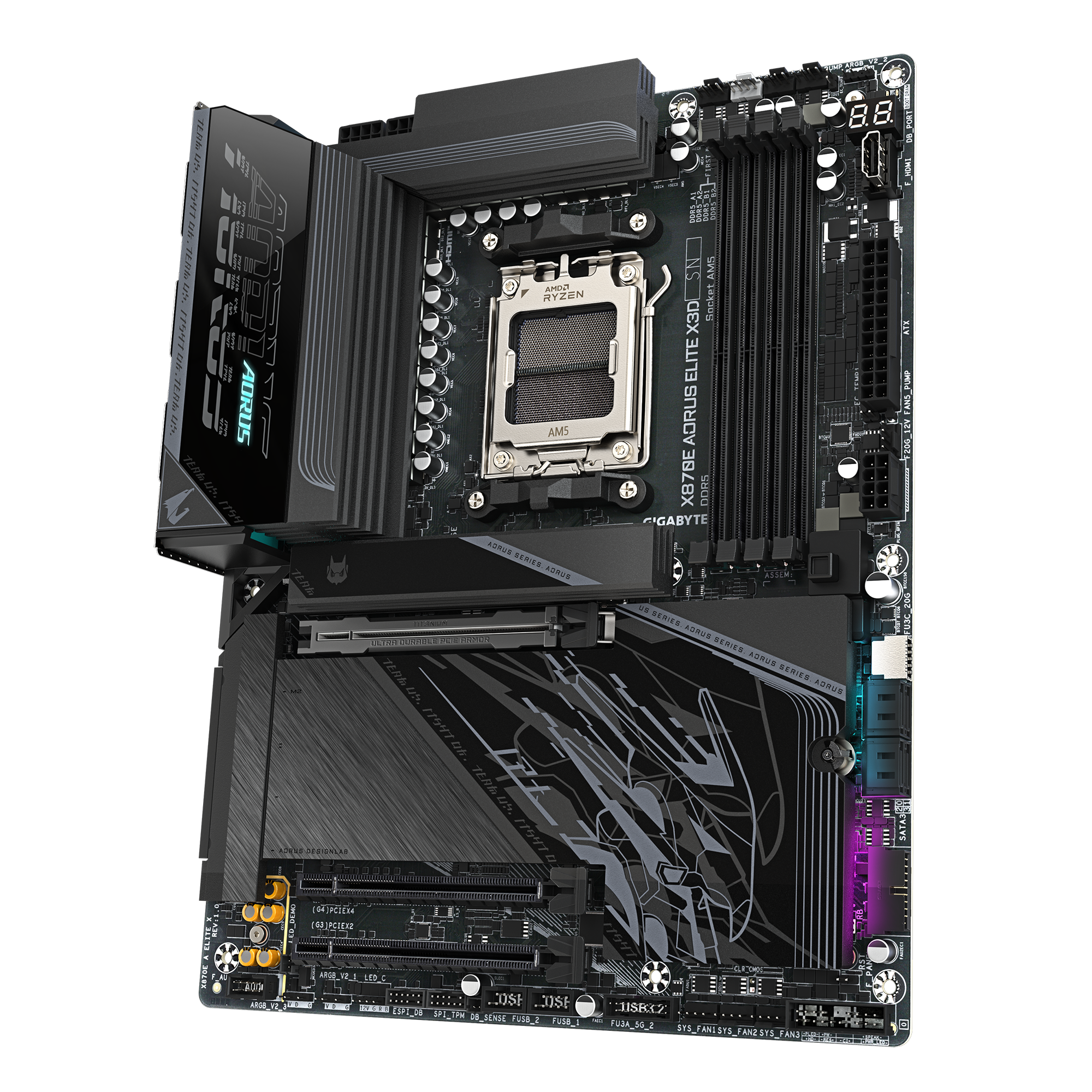

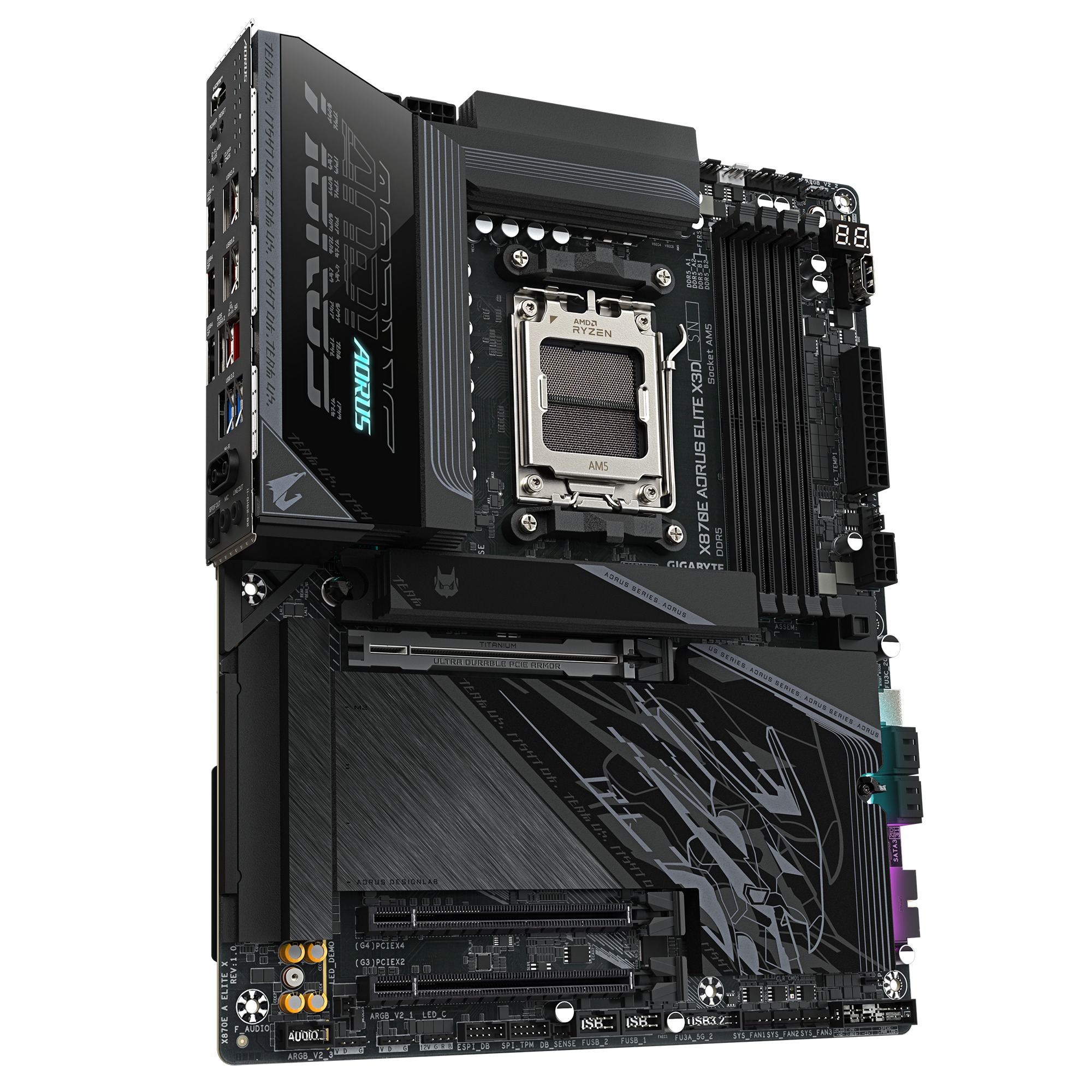

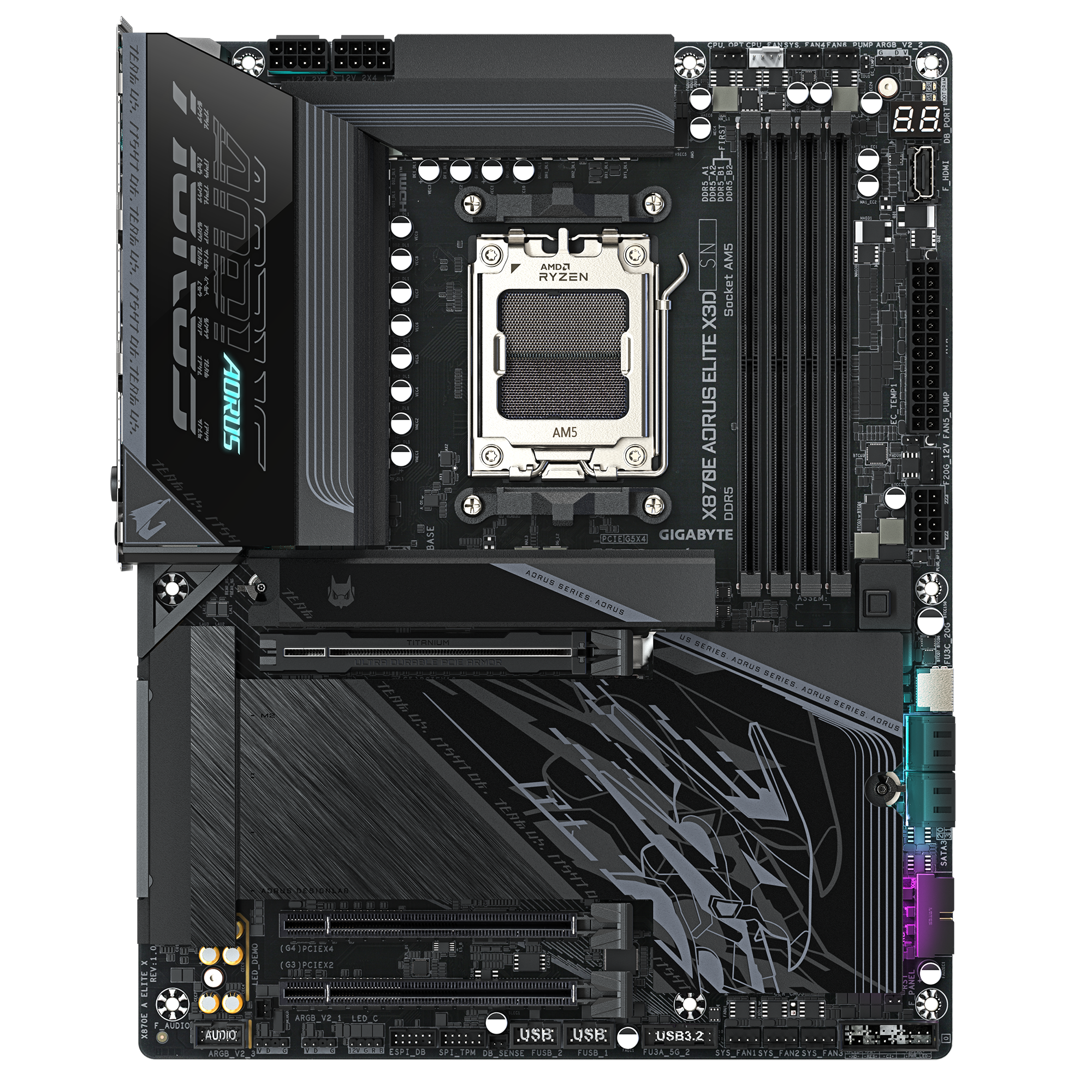

GIGABYTE X870E AORUS ELITE X3D – Technical Specifications
Main Specifications
| Feature | Specification |
|---|---|
| Chipset | AMD X870E |
| CPU Socket | AMD AM5 |
| Supported CPUs | Ryzen 7000, 8000 and 9000 Series |
| Form Factor | ATX |
| Dimensions | 305 × 244 mm |
| Memory Type | DDR5 |
| Memory Slots | 4 × DIMM |
| Maximum Memory | 256GB |
| Memory Speed | Up to DDR5-9000 (OC) |
| Memory Architecture | Dual Channel |
| Main Graphics Slot | PCIe 5.0 x16 |
| Additional Expansion Slots | 1 × PCIe 4.0 x4, 1 × PCIe 3.0 x2 |
| M.2 Slots | 4 |
| M.2 Storage | 2 × PCIe 5.0 x4, 2 × PCIe 4.0 x4 |
| SATA Ports | 4 × SATA 6Gb/s |
| LAN | 5GbE |
| Wi-Fi | Wi-Fi 7 |
| Bluetooth | 5.4 |
| Audio | Realtek ALC1220, 8-channel HD Audio |

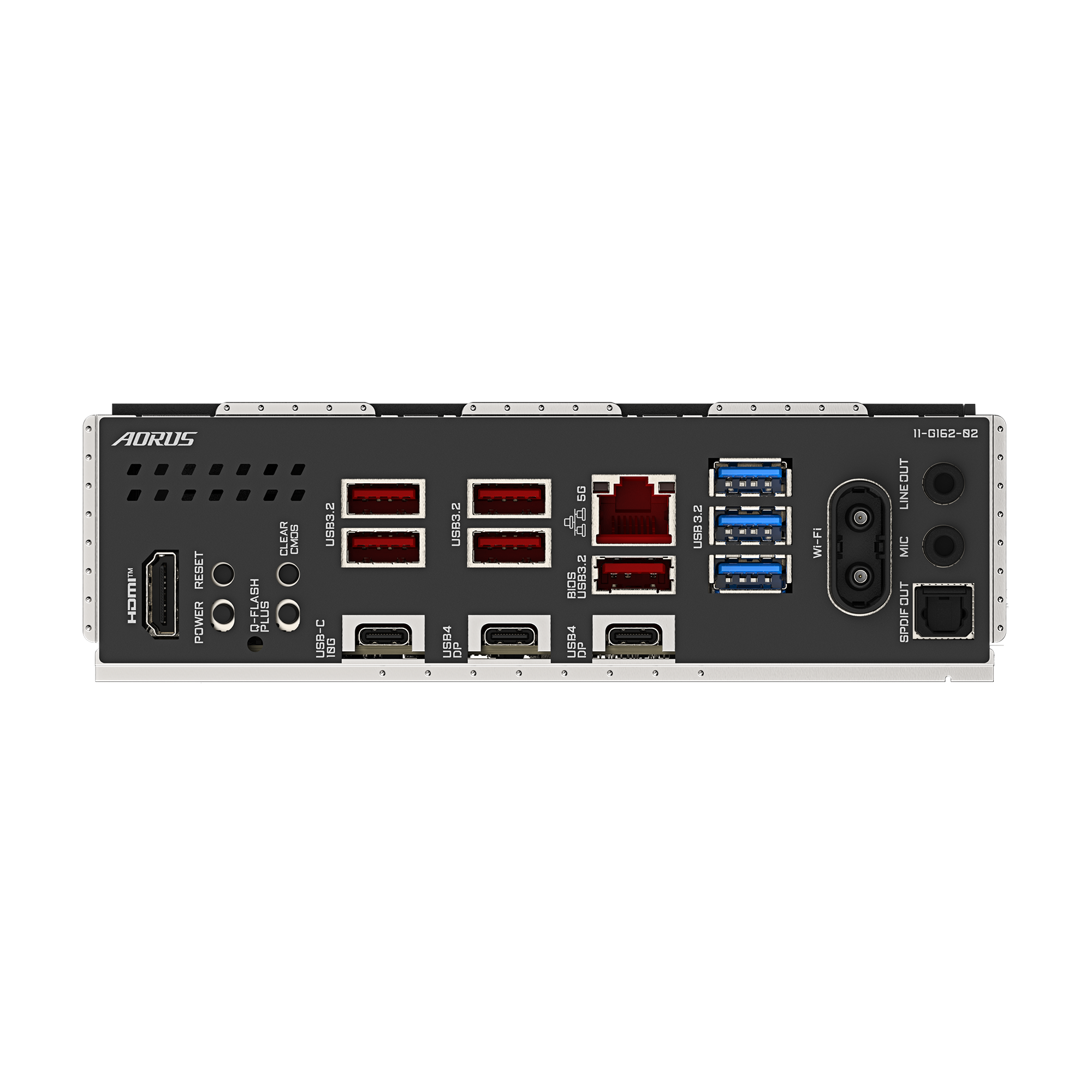

Connectivity
-
USB4 Type-C: 2 × USB4, up to 40Gbps each, with DisplayPort output support
-
USB-C Rear: 1 × USB 3.2 Gen 2
-
USB-A Rear: 5 × USB 3.2 Gen 2 and 3 × USB 3.2 Gen 1
-
HDMI: 1 × HDMI
-
Ethernet: 1 × RJ-45, 5GbE
-
Wireless: Wi-Fi 7 with external antenna
-
Audio: Audio jacks and optical S/PDIF output
-
Front USB-C: USB 3.2 Gen 2×2 with up to 65W Power Delivery
Power and Cooling
-
VRM: 16+2+2-phase digital power design
-
CPU Power Connectors: 2 × 8-pin
-
Cooling: VRM Thermal Armor, direct-touch heatpipe and M.2 Thermal Guards
-
Fan Control: Smart Fan 6
-
RGB: 1 × RGB header and 3 × addressable RGB headers
-
BIOS Update: Q-Flash Plus
-
Memory Profiles: AMD EXPO and Intel XMP support
