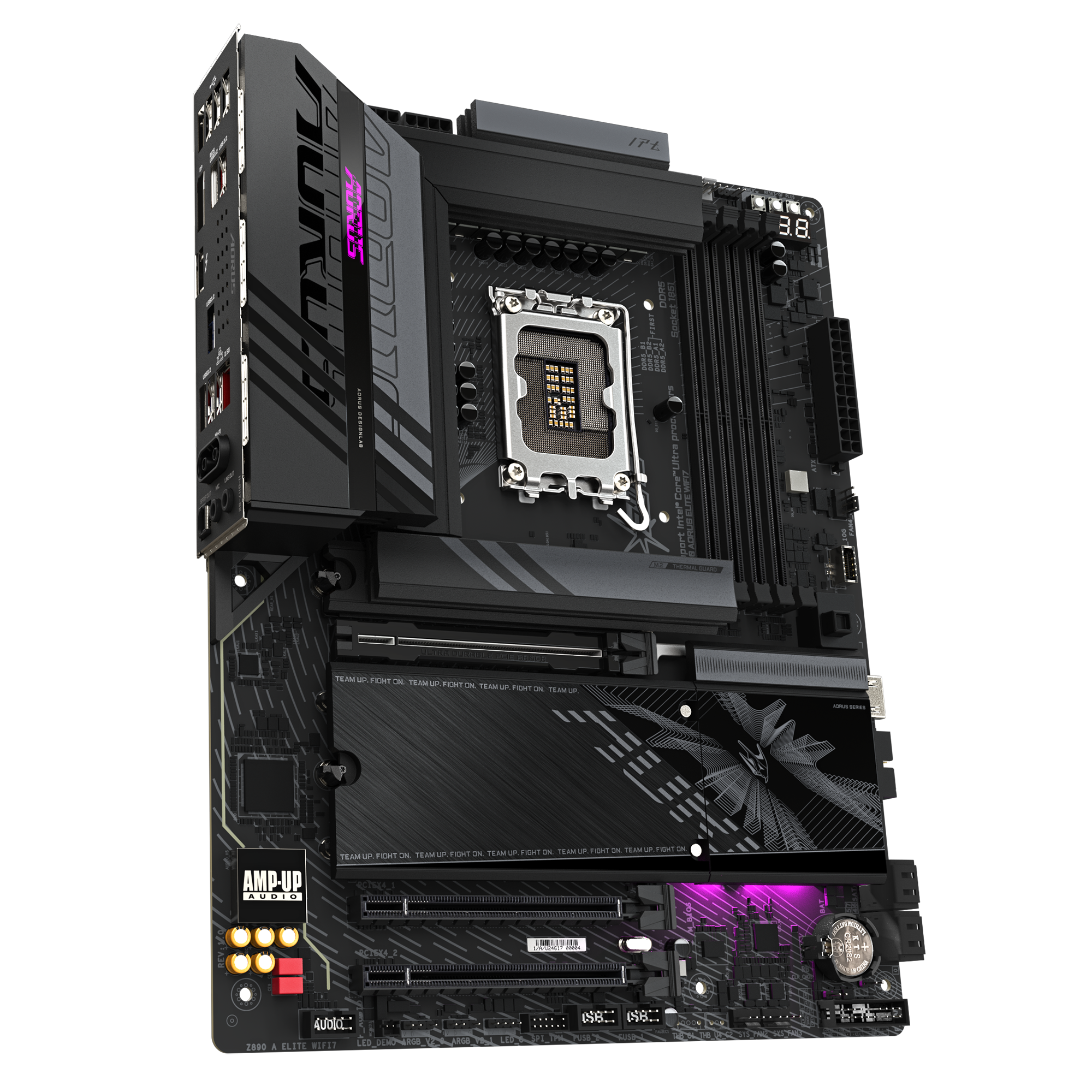

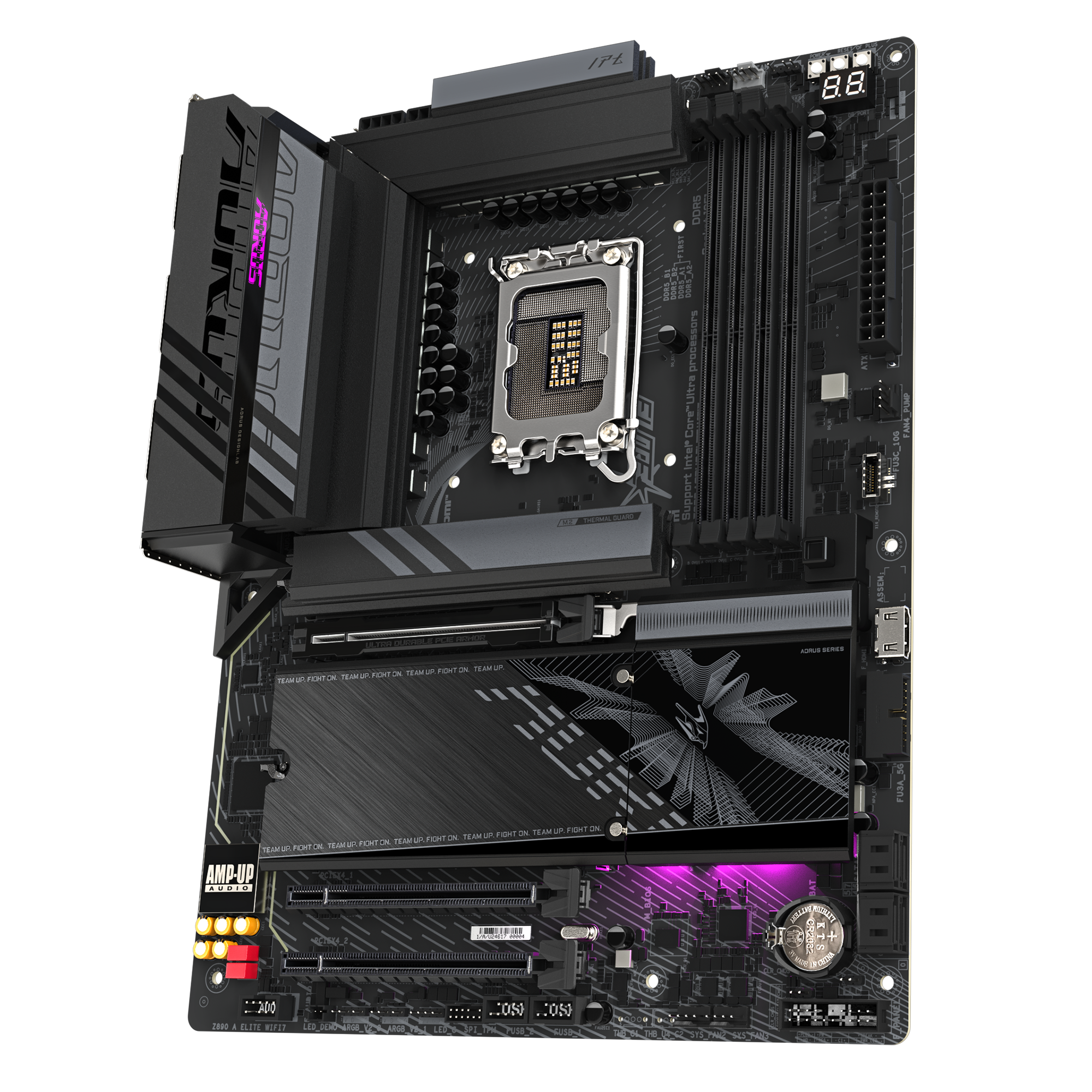

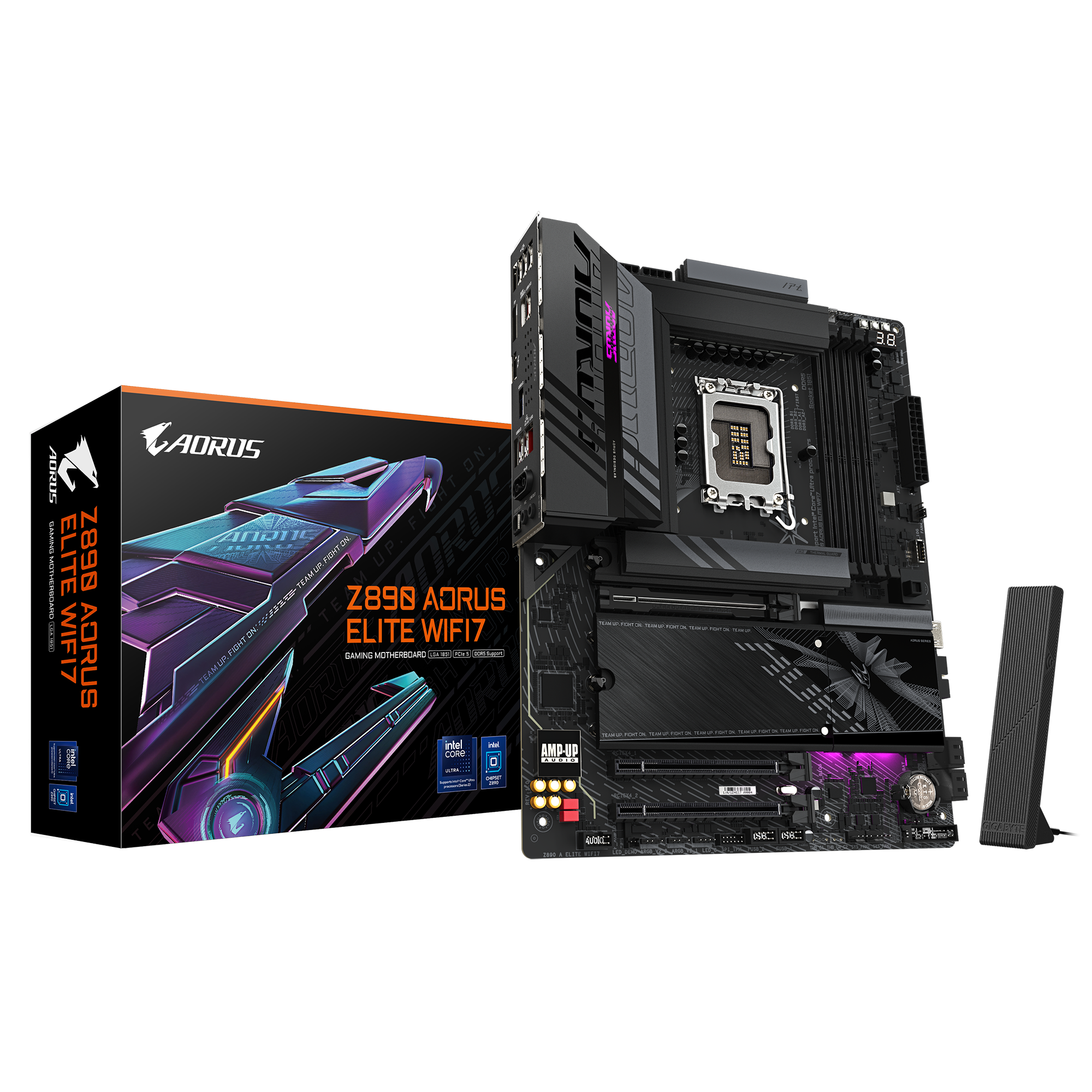

GIGABYTE Z890 AORUS ELITE WIFI7 – Technical Specifications
Main Specifications
| Feature | Specification |
|---|---|
| Chipset | Intel Z890 Express |
| CPU Socket | LGA1851 |
| Supported CPUs | Intel Core Ultra Series 2 |
| Form Factor | ATX |
| Dimensions | 305 × 244 mm |
| Memory Type | DDR5 |
| Memory Slots | 4 × DIMM |
| Maximum Memory | 256GB |
| Memory Speed | Up to DDR5-9200 (OC) |
| Memory Architecture | Dual Channel |
| Main Graphics Slot | PCIe 5.0 x16 |
| Additional Expansion Slots | 2 × PCIe 4.0 x16 (x4 electrical) |
| M.2 Slots | 4 |
| M.2 Storage | 1 × PCIe 5.0, 3 × PCIe 4.0 |
| SATA Ports | 4 × SATA 6Gb/s |
| LAN | Realtek 2.5GbE |
| Wi-Fi | Wi-Fi 7 |
| Bluetooth | 5.4 |
| Audio | Realtek ALC1220, up to 7.1-channel |

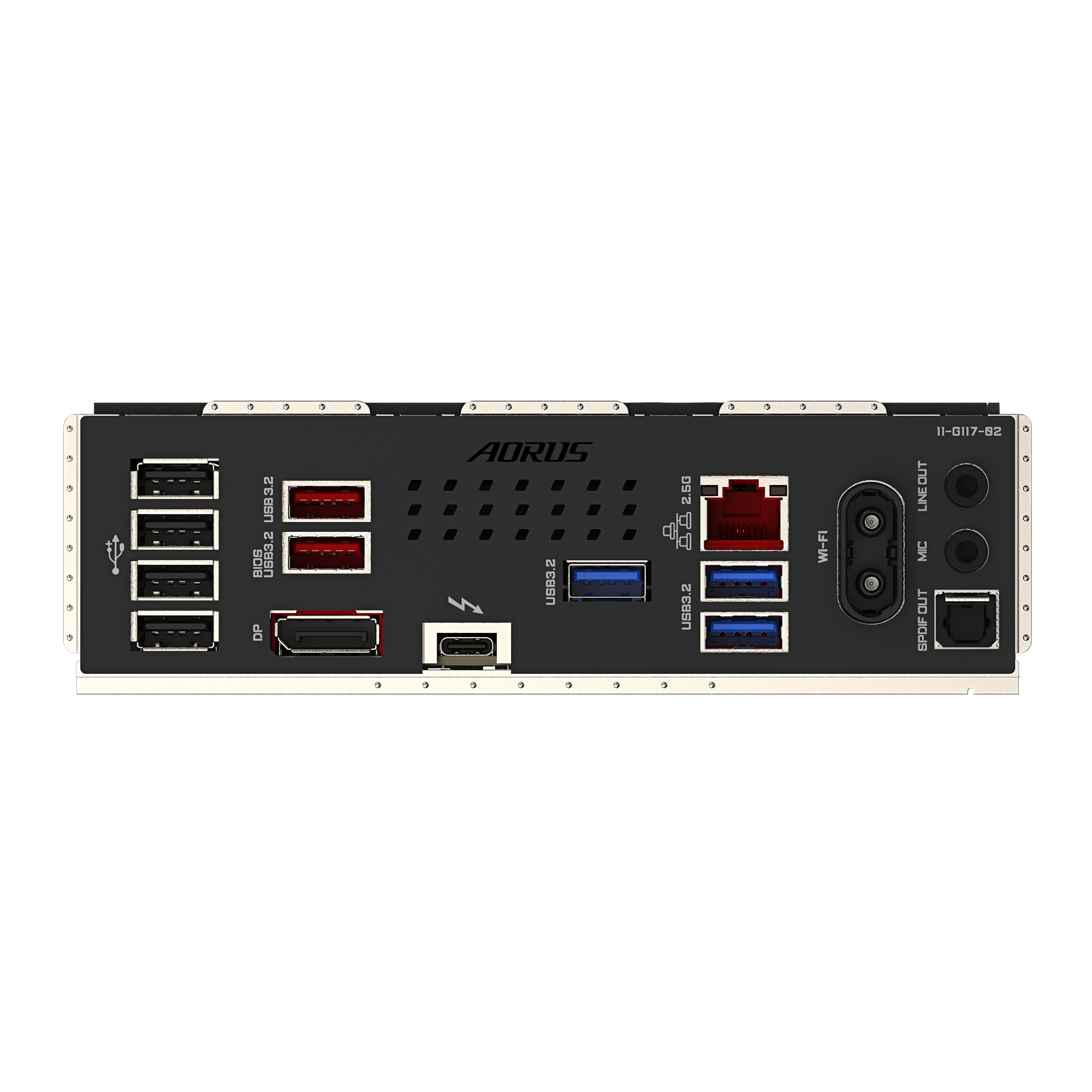

Connectivity
-
Thunderbolt 4 / USB-C: 1 × rear port, up to 40Gbps with Thunderbolt devices
-
USB-A: 2 × USB 3.2 Gen 2, 3 × USB 3.2 Gen 1 and 4 × USB 2.0 on the rear panel
-
DisplayPort: 1 × DisplayPort 2.1
-
Ethernet: 1 × RJ-45, 2.5GbE
-
Wireless: Wi-Fi 7 with external antenna
-
Audio: Optical S/PDIF output and 2 audio jacks
-
Front USB-C: 1 × USB 3.2 Gen 2 header
-
Storage: 4 × M.2 and 4 × SATA connectors
Power and Cooling
-
VRM: 16+1+2+1 digital power phases with 80A Smart Power Stages
-
CPU Power Connectors: 2 × 8-pin
-
Cooling: VRM heatsinks with heatpipe and M.2 Thermal Guard
-
Fan Control: Smart Fan 6
-
RGB: Addressable RGB and RGB headers
-
BIOS Update: Q-Flash Plus
-
Memory Profiles: Intel XMP support
